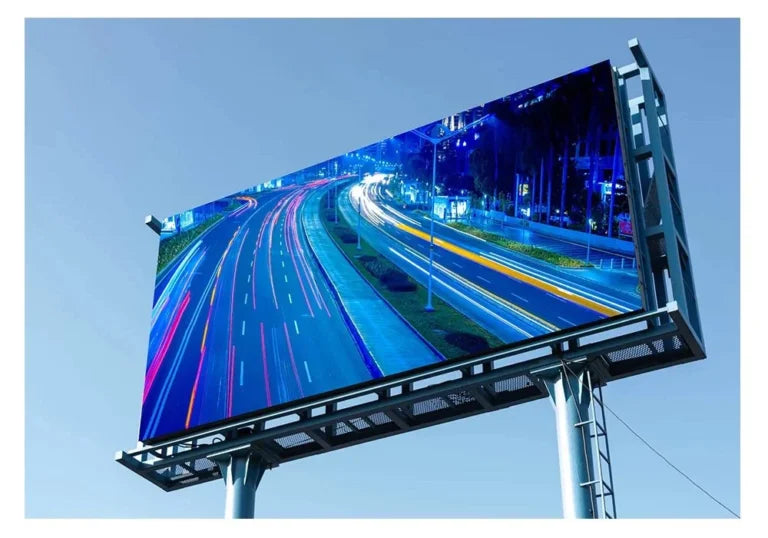

A Technical Guide to Indoor and Outdoor LED Panels: From Pixel Pitch to Brightness
A Technical Guide to Indoor and Outdoor LED Panels: From Pixel Pitch to Brightness
LED display technology has transformed visual communication across industries, offering stunning clarity and versatility. Whether you need indoor LED panels for corporate environments or outdoor LED panels for high-impact advertising, understanding the technical specifications is crucial for optimal performance.
This comprehensive guide explores the key technical aspects of LED panels—from pixel pitch to brightness—helping you make informed decisions when selecting displays from a manufacture of LED panels.
1. Understanding Pixel Pitch: The Foundation of Image Clarity
Pixel pitch (measured in millimeters) refers to the distance between the centers of two adjacent LED pixels. It determines image sharpness and optimal viewing distance.
Pixel Pitch Guidelines for LED Panels
| Application | Indoor LED Panels | Outdoor LED Panels |
|---|---|---|
| Typical Pixel Pitch | P1.2 – P4 | P4 – P20 |
| Viewing Distance | 1m – 10m | 10m – 100m+ |
| Best For | Retail, control rooms, conferences | Billboards, stadiums, traffic signs |
Key Insight:
- Smaller pixel pitch = Higher resolution (better for close viewing).
- Larger pixel pitch = Cost-effective for long-distance visibility.
2. Brightness (Nits): Ensuring Visibility in Any Environment
Brightness, measured in nits (cd/m²), determines how well an LED panel performs under different lighting conditions.
Recommended Brightness Levels
| Environment | Indoor LED Panels | Outdoor LED Panels |
|---|---|---|
| Standard Brightness | 1,000 – 2,500 nits | 5,000 – 10,000+ nits |
| High-Ambient Light | Up to 3,500 nits | Up to 15,000 nits |
Why It Matters:
- Indoor panels need lower brightness to prevent eye strain.
- Outdoor panels require high brightness to combat sunlight glare.
Pro Tip: Some advanced manufacture of LED panels offers auto-dimming technology to adjust brightness dynamically.
3. Resolution & Viewing Distance: Finding the Right Balance
The resolution of an LED panel depends on pixel density and screen size. Higher resolution means sharper images but increases cost.
Viewing Distance Formula
Optimal Viewing Distance (m) = Pixel Pitch (mm) × 2
Example:
- P2.5 indoor panel → Best viewed from 5m away.
- P10 outdoor panel → Best viewed from 20m away.
4. Durability & Protection: Indoor vs. Outdoor Requirements
Indoor LED Panels
✔ Slim, lightweight designs
✔ Minimal weather protection needed
✔ Anti-glare coatings for comfortable viewing
Outdoor LED Panels
✔ IP65+ rating (dustproof & waterproof)
✔ Corrosion-resistant materials (aluminum, stainless steel)
✔ Advanced cooling systems (heat dissipation for prolonged use)
Manufacturing Note: A reputable manufacture of LED panels will use high-grade materials to ensure longevity.
5. Refresh Rate & Color Performance
-
Refresh Rate (Hz):
- Indoor: 1,920Hz+ (smooth video playback)
- Outdoor: 3,840Hz+ (reduces flicker in bright conditions)
-
Color Gamut:
- >90% NTSC coverage for vibrant, true-to-life colors.
Best Practice: Check if the manufacturer uses SMD (Surface-Mounted Device) or COB (Chip-on-Board) technology for better color consistency.
6. Energy Efficiency & Maintenance
| Factor | Indoor LED Panels | Outdoor LED Panels |
|---|---|---|
| Power Consumption | Lower (200–500W/m²) | Higher (500–1,200W/m²) |
| Cooling Needs | Passive cooling | Active cooling (fans, AC) |
| Maintenance | Minimal | Modular repairs |
Cost-Saving Tip:
- Look for energy-saving modes in outdoor displays.
- Choose panels with modular designs for easy maintenance.
7. Choosing the Right Manufacturer
When sourcing from a manufacture of LED panels, consider:
Customization options (size, shape, pixel pitch)
Certifications (CE, RoHS, ISO)
Warranty & after-sales support
Real-world case studies & client reviews
Conclusion: Matching Technical Specs to Your Needs
Selecting the right indoor LED panels or outdoor LED panels requires balancing:
✔ Pixel pitch (for resolution & viewing distance)
✔ Brightness (for visibility in different environments)
✔ Durability (weatherproofing for outdoor use)
✔ Energy efficiency (long-term cost savings)
By partnering with an experienced manufacture of LED panels, you can ensure high performance, reliability, and ROI for your investment.
